Product Class: Other

TriDye™ 1 kb Plus DNA Ladder
Item# Description List Price Web Price Qty
N3270S TriDye 1 kb Plus DNA Ladder - 250 gel lanes $112.00
$100.80
ADD TO CART
*On-line ordering is for Canadian customers only. Web pricing is applicable only to orders placed online at www.neb.ca
X

Companion Products

Item# Description List Price Web Price Qty
N0467L Quick-Load 100 bp DNA Ladder - 375 gel lanes $290.00
$261.00
ADD TO CART
N0467S Quick-Load 100 bp DNA Ladder - 125 gel lanes $117.00
$105.30
ADD TO CART
N0468L Quick-Load 1 kb DNA Ladder - 375 gel lanes $210.00
$189.00
ADD TO CART
N0468S Quick-Load 1 kb DNA Ladder - 125 gel lanes $88.00
$79.20
ADD TO CART
N0469S Quick-Load 1 kb plus DNA Ladder - 125-250 gel lanes $105.00
$94.50
ADD TO CART
N3231L 100 bp DNA Ladder - 500 gel lanes $318.00
$286.20
ADD TO CART
N3231S 100 bp DNA Ladder - 100 gel lanes $80.00
$72.00
ADD TO CART
N3232L 1 kb DNA Ladder - 1,000 gel lanes $298.00
$268.20
ADD TO CART
N3232S 1 kb DNA Ladder - 200 gel lanes $76.00
$68.40
ADD TO CART
N3234L PCR Marker - 500 gel lanes $370.00
$333.00
ADD TO CART
N3234S PCR Marker - 100 gel lanes $92.00
$82.80
ADD TO CART
N3236L 50 bp DNA Ladder - 500-1000 gel lanes $387.00
$348.30
ADD TO CART
N3236S 50 bp DNA Ladder - 100-200 gel lanes $96.00
$86.40
ADD TO CART
N3271S TriDye 100 bp DNA Ladder - 125 gel lanes $126.00
$113.40
ADD TO CART
N3272S TriDye 1 kb DNA Ladder - 125 gel lanes $92.00
$82.80
ADD TO CART
T1010L Monarch Plasmid Miniprep Kit - 250 preps $407.00
$366.30
ADD TO CART
T1010S Monarch Plasmid Miniprep Kit - 50 preps $98.00
$88.20
ADD TO CART
T1020L Monarch DNA Gel Extraction Kit - 250 preps $570.00
$513.00
ADD TO CART
T1020S Monarch DNA Gel Extraction Kit - 50 preps $124.00
$111.60
ADD TO CART
T1030L Monarch PCR & DNA Cleanup Kit - 250 preps $570.00
$513.00
ADD TO CART
T1030S Monarch PCR & DNA Cleanup Kit - 50 preps $124.00
$111.60
ADD TO CART

This product was previously named the TriDye™ 2-Log DNA Ladder. There have been no changes to product formulation or specifications.

    Product Introduction

    • Size range: 100 bp to 10 kb
    • Convenient, ready-to-load format
    • Formulated with 3 different tracking dyes
    • Easy to identify reference bands
    • Suitable for 250 gel lanes

    Product Information

    Description



    TriDye™ 1 kb Plus DNA Ladder is a pre-mixed, ready-to-load molecular weight marker containing 3 dyes which serve as visual aids to monitor the progress of migration during agarose gel electrophoresis.

    The DNA Ladder consists of proprietary plasmids which are digested to completion with appropriate restriction enzymes to yield 19 bands suitable for use as molecular weight standards for agarose gel electrophoresis. This digested DNA includes fragments ranging from 100 bp to 10 kb. The 0.5, 1.0 and 3.0 kb bands have increased intensity to serve as reference points.

    • Recommended gel percentage range: 1-1.4%
    • Optimum separation on 1.2%

    TriDye During Electrophoresis: On a standard 1% agarose gel in 1X TBE, xylene cyanol FF migrates at approximately 4 kb, bromophenol blue at approximately 300 bp and the orange G at approximately 50 bp. As the percentage of agarose changes, the migration rates of the dyes relative to migration rates of the DNA will change.

    2-Log DNA Ladder

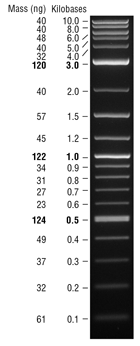

    1 kb Plus DNA Ladder visualized by ethidium bromide staining on a 1.0% TBE agarose gel. Mass values are for 1 µg/lane.
    Product Categories:
    DNA Markers & Ladders Products
    Applications:
    DNA Analysis

    Properties & Usage

      Bases

      Fragment Mass bp
      1 40 10002
      2 40 8001
      3 48 6001
      4 40 5001
      5 32 4001
      6 120 3001
      7 40 2017
      8 57 1517
      9 45 1200
      10 122 1000
      11 34 900
      12 31 800
      13 27 700
      14 23 600
      15 124 500/517
      16 49 400
      17 37 300
      18 32 200
      19 61 100

      Effective Size Range

      100.0bp to 10,002.0bp

      Storage Temperature

      4°C

      Storage Conditions

      0.006% Xylene Cyanol
      10 mM Tris-HCl
      10 mM EDTA
      10% Glycerol
      0.006% bromophenol blue
      0.06% Orange G
      pH 7.9 @ 25°C

      Product Notes

      1. The TriDye DNA Ladder was not designed for precise quantification of DNA mass but can be used for approximating the mass of DNA in comparably intense samples of similar size.
      2. We recommend loading 5-10 μl (0.5-1.0 μg) of TriDye DNA ladder per gel lane.
      3. In general, it is recommended to load 1ul per mm of gel lane.
      4. TriDye DNA Ladder is stable for at least 6 months at 25°C.
      5. For long term storage, store at 4°C or -20°C. If stored at -20°C, mix well after thawing.

      References

      1. Sambrook, J., Fritsch, E.F. and Maniatis, T. (1989). Molecular Cloning: A Laboratory Manual (2nd Ed.). 10.51-10.67.

      Protocols, Manuals & Usage

      Protocols

      1. Protocol for Product TriDye™ 1 kb Plus DNA Ladder (NEB #N3270)

      Datacards

      The Product Summary Sheet, or Data Card, includes details for how to use the product, as well as details of its formulation and quality controls. The following file naming structure is used to name the majority of these document files: [Catalog Number]Datasheet-Lot[Lot Number]. For those product lots not listed below, please contact NEB at [email protected] or fill out the Technical Support Form for appropriate document.)

      Tools & Resources

      Selection Charts

      • DNA Markers & Ladders Selection Chart

      Faqs & Troubleshooting

      FAQs

      1. Why are the DNA ladders showing up on my Southern blot? What is the sequence or composition of the ladder bands?
      2. How can I quantify the amount of DNA in each band of a marker?
      3. Can I use GelRed® with the DNA Ladders from NEB?
      4. Can I use Midori Green with the DNA Ladders from NEB?
      5. Can I use SYBR® with the DNA Ladders from NEB?

      Troubleshooting

      Tech Tips

      Mix well before use, especially after thawing.

      Quality, Safety & Legal

      Quality Assurance Statement

      Quality Control tests are performed on each new lot of NEB product to meet the specifications designated for it. Specifications and individual lot data from the tests that are performed for this particular product can be found and downloaded on the Product Specification Sheet, Certificate of Analysis, data card or product manual. Further information regarding NEB product quality can be found here.

      Specifications

      The Specification sheet is a document that includes the storage temperature, shelf life and the specifications designated for the product. The following file naming structure is used to name these document files: [Product Number]_[Size]_[Version]

      Certificate Of Analysis

      The Certificate of Analysis (COA) is a signed document that includes the storage temperature, expiration date and quality controls for an individual lot. The following file naming structure is used to name these document files: [Product Number]_[Size]_[Version]_[Lot Number]

      Safety DataSheets

      The following is a list of Safety Data Sheet (SDS) that apply to this product to help you use it safely.

      Legal and Disclaimers

      This product is covered by one or more patents, trademarks and/or copyrights owned or controlled by New England Biolabs, Inc (NEB).

      While NEB develops and validates its products for various applications, the use of this product may require the buyer to obtain additional third party intellectual property rights for certain applications.

      For more information about commercial rights, please contact NEB's Global Business Development team at [email protected].

      This product is intended for research purposes only. This product is not intended to be used for therapeutic or diagnostic purposes in humans or animals.
