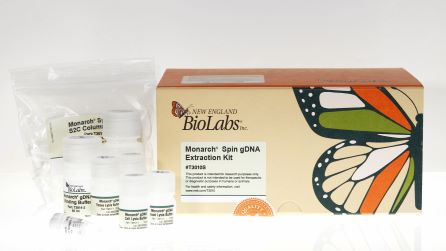

Monarch® Genomic DNA Purification Kit

Catalog # Concentration Size List Price Quantity Your Price
T3010L 150 preps $570.00
$513.00
T3010S 50 preps $232.00
$208.80
Catalog # Size List Price Your Price
T3010L 150 preps $570.00
$513.00
T3010S 50 preps $232.00
$208.80
Catalog #
Qty:

*On-line ordering is for Canadian customers only. Web pricing is applicable only to orders placed online at www.neb.ca

  • Extract from a broad range of sample types, such as cells, blood, tissue, bacteria, yeast, saliva, swabs with just this single kit. Suitable for clinically-relevant samples (e.g., saliva, cheek).
  • Isolate high molecular weight gDNA (peak size typically ≥ 50 kb) for use directly in downstream applications, including PCR, qPCR/RT-qPCR, NGS and sequencing.
  • Obtain excellent yields of highly-pure DNA with very low residual RNA contamination (typically <1%) with included RNase A and Proteinase K.
  • Protocol compatible for cleanup of gDNA from other purifications.
  • Kit components and columns also offered separately.

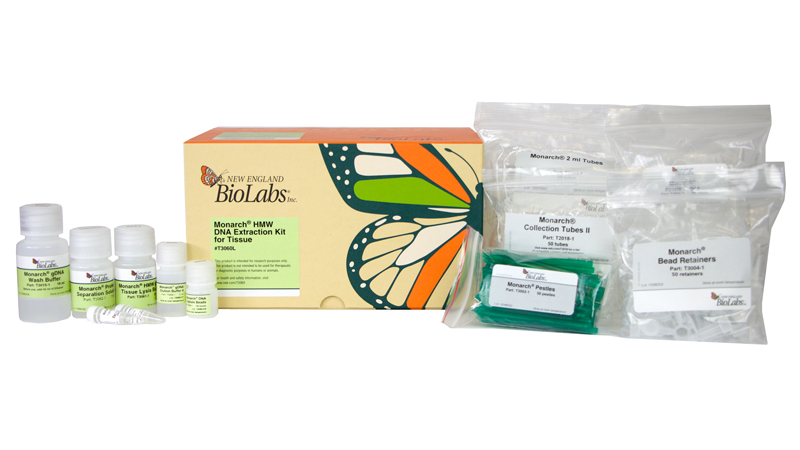

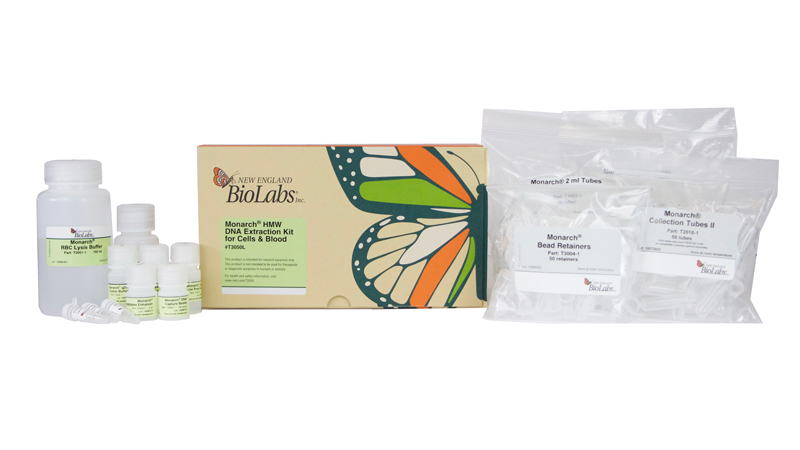

  • For HMW gDNA extraction up to Mb range for long-read sequencing, see related Monarch HMW DNA Extraction Kit for Cells & Blood (NEB #T3050) or Monarch HMW DNA Extraction Kit for Tissue (NEB #T3060).

Check out our Technical Note containing comprehensive insights into measuring and analyzing nucleic acids.

Featured Videos
View Video Library

The Monarch Genomic DNA Purification Kit is a comprehensive solution for cell lysis, RNA removal, and purification of intact genomic DNA (gDNA) from a wide variety of biological samples, including cultured cells, blood, and mammalian tissues. Additionally, bacteria and yeast can be processed with extra steps to enhance lysis in these tough-to-lyse samples. Protocols are also included to enable purification from clinically-relevant samples such as saliva and cheek swabs as well as rapid cleanup of previously extracted gDNA. Purified gDNA has high quality metrics, including A260/A280 > 1.8 and A260/A230 > 2.0, high DIN scores and minimal residual RNA. The purified gDNA is suitable for downstream applications such as end-point PCR, qPCR and library prep for NGS. It typically has a peak size of > 50kb, making this kit an excellent choice upstream of long-read sequencing platforms.

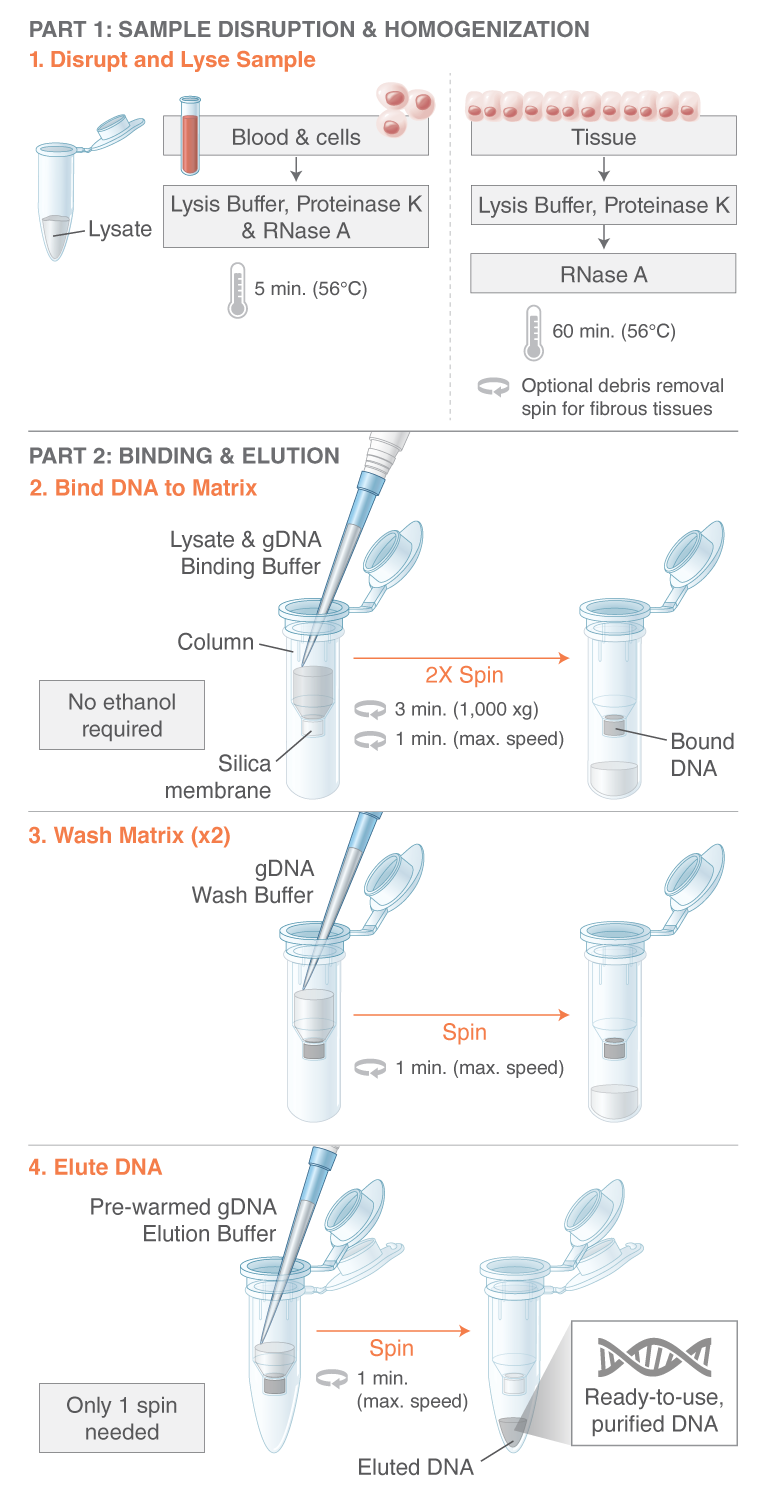

Workflow for the Monarch Genomic DNA Purification Kit




Specifications:

Input:

Cultured mammalian cells: up to 5 x 106 cells

Mammalian whole blood: 100 µl

Tissue: up to 25 mg, depending on tissue type

Bacteria: up to 2 x 109

Yeast: up to 5 x 107

Saliva: up to 500 µl

Buccal swabs

Genomic DNA requiring cleanup

Binding Capacity: 30 µg genomic DNA
Yield: Varies depending on sample type
Genomic DNA Size: Peak size > 50 kb for most sample types; may be lower for saliva and buccal swabs
RNA Content < 1% (with included RNase A treatment)
Elution Volume ≥35 µl, but 100 µl is recommended
Purity: A260/280 ≥ 1.8
A260/230 ≥ 2.0



Validated Sample Types:

  • Mouse Tail
  • Mouse Ear
  • Mouse Liver
  • Rat Liver
  • Mouse Kidney
  • Mouse Spleen
  • Mouse Heart
  • Mouse Lung
  • Mouse Brain
  • Rat Brain


  • Mouse Muscle
  • Rat Muscle
  • Deer Muscle
  • Human Blood
  • Mouse Blood
  • Rabbit Blood
  • Pig Blood
  • Guinea Pig Blood
  • Cow Blood
  • Horse Blood
  • Dog Blood
  • Chicken Blood
  • HeLa Cells
  • HEK293 Cells
  • NIH3T3 Cells
  • E. coli
  • Rhodobacter sp.
  • B. cereus
  • T. kodakarensis
  • S. cerevisiae
  • Saliva
  • Buccal swab

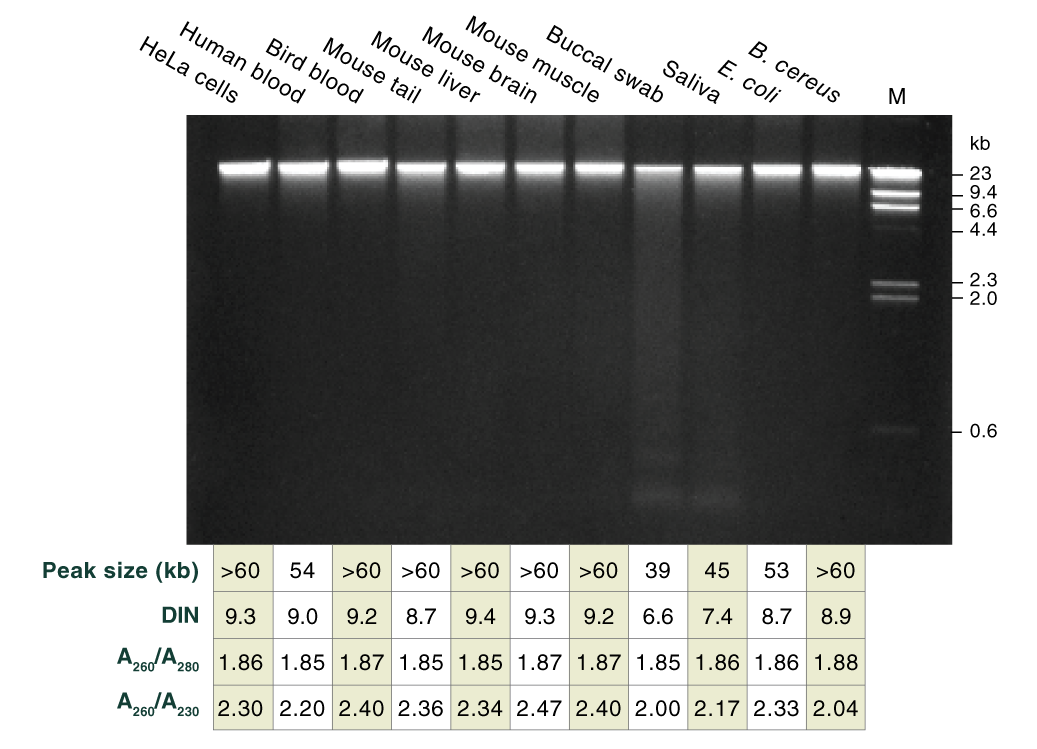

Figure 1: The Monarch Genomic DNA Purification Kit efficiently purifies high-quality, high molecular weight gDNA from a variety of sample types.



100 ng of genomic DNA from each sample was loaded on a 0.75% agarose gel. gDNA was isolated following the standard protocols for blood, cultured cells and tissue, and the supplemental protocols for buccal swabs, saliva, Gram– and Gram+ bacteria. Starting material used: 1 x 106 HeLa cells, 100 μl human blood, 10 μl bird blood, 10 mg frozen tissue powder, 1 buccal swab, 500 μl saliva and ~1 x 109 bacterial cells. Lambda DNA-Hind III digest (NEB #N3012) was used as a marker in the last lane (M). Purified gDNA samples were analyzed using a Genomic DNA ScreenTape® on an Agilent Technologies® 4200 TapeStation®. Samples typically yield peak sizes 50–70 kb and DINs of ~9. The cell fractions processed in the buccal swab and saliva preps contain dead cells, as expected, causing a smear like pattern with typical low molecular weight apoptotic bands.

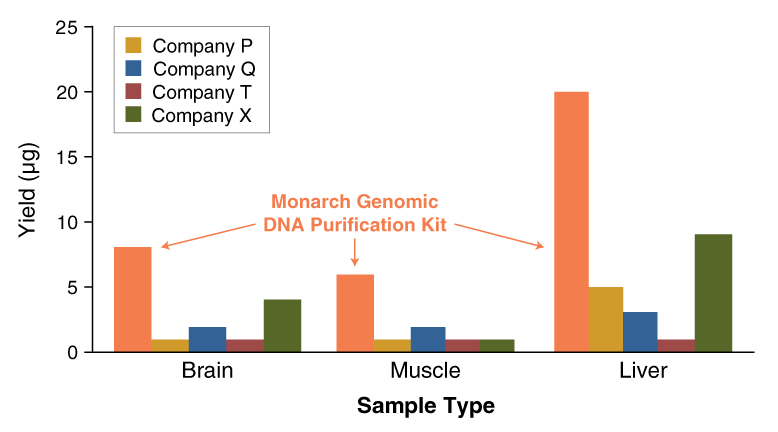

Figure 2: The Monarch Genomic DNA Purification Kit provides excellent yields for tissues that are problematic for other commercial kits.



Duplicate 10 mg samples of RNAlater®-stabilized rat tissue were cut to small pieces and subsequently lysed and purified according to the protocols provided for each kit. Optional RNase A steps were included. Elution was carried out with 100 µl elution buffer provided in the respective kits. Yields displayed are averages of the duplicate samples, and represent the genomic DNA yield after correcting for the RNA content as determined by LC-MS. Results indicate that the Monarch Genomic DNA Purification Kit provides excellent yields for a wide range of tissues.

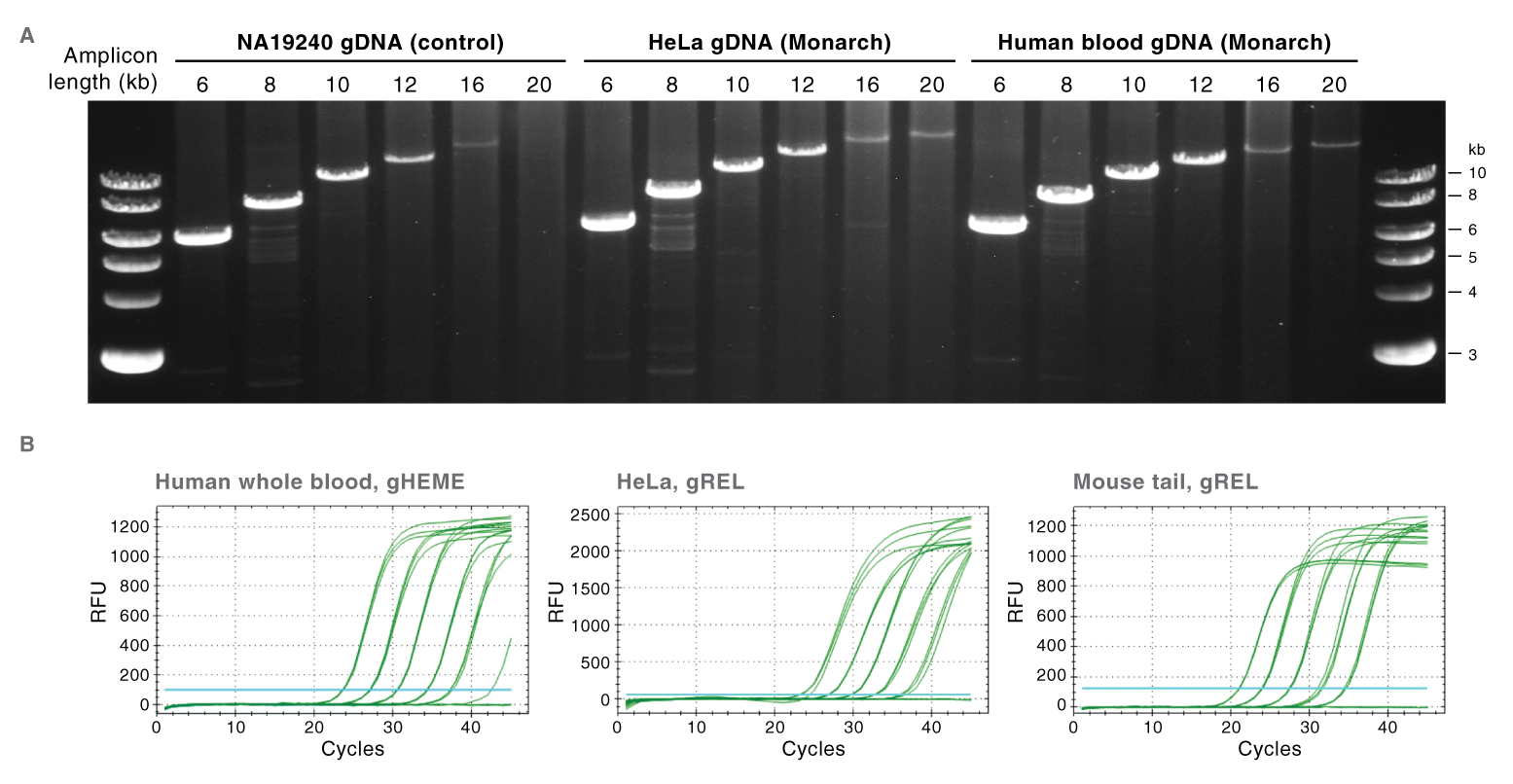

Figure 3: Genomic DNA purified with the Monarch Genomic DNA Purification Kit is high quality and suitable for sensitive applications like long range PCR and qPCR.



A. Amplification reactions were set up with primer pairs specific for 6, 8, 10, 12, 16, 20 kb amplicons from human DNA. LongAmp® Hot Start Taq 2X Master Mix (NEB #M0533) was used and 25 ng template DNA was added to each sample. PCR reactions were carried out on an Applied Biosystems 2720 Thermal Cycler. Monarch-purified genomic DNA isolated from HeLa cells and human blood were compared to commercially available reference DNA from the human cell line NA19240 F11. 10 of 20 µl was loaded on a 1.5% agarose gel, using the 1 kb DNA Ladder (NEB #N3232) as a marker. Results indicated DNA was of high-integrity and suitable for long range PCR.

B. Monarch-purified genomic DNA from human whole blood, HeLa cells and mouse tail was diluted to produce a five log range of input template concentrations. The results were generated using primers targeting gHEME (human whole blood) and gREL (HeLa, mouse tail) for qPCR assays with the Luna Universal qPCR Master Mix (NEB #M3003) and cycled on a Bio-Rad® CFX Touch qPCR thermal cycler. Results indicated that DNA is highly pure and free from inhibitors, optimal for qPCR.

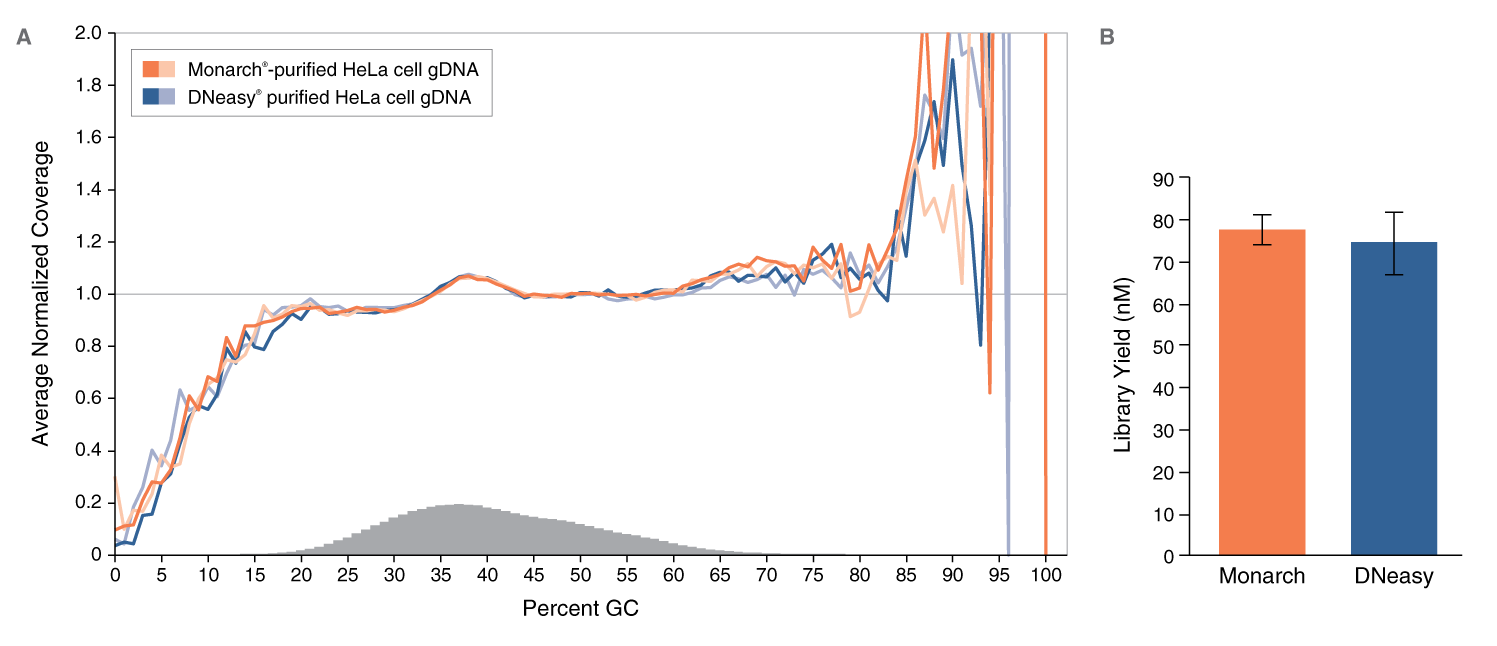

Figure 4: The Monarch Genomic DNA Purification Kit produces excellent input material for NGS library preparation with NEBNext® kits for Illumina®.



A. Duplicate libraries were made from 100 ng HeLa cell gDNA purified with Monarch (orange) or Qiagen DNeasy Mini Kit (blue) using the NEBNext Ultra II FS DNA Library Prep Kit for Illumina (NEB #E7805). Libraries were sequenced on an Illumina MiSeq. Reads were mapped using Bowtie 2.2.4 and GC coverage was calculated using Picard’s CollectGCBiasMetrics (v1.117). Expected normalized coverage of 1.0 is indicated by the horizontal grey line, the number of 100 bp regions at each %GC is indicated by the vertical grey bars, and the colored lines represent the normalized coverage for each library. Monarch GC coverage matched Qiagen DNeasy results.

B. Yields of libraries produced by enzymatic shearing are equivalent when using Monarch-purified gDNA. Library yields of the samples described above were assessed on an Agilent Technologies® 2100 BioAnalyzer using a High Sensitivity DNA Kit.

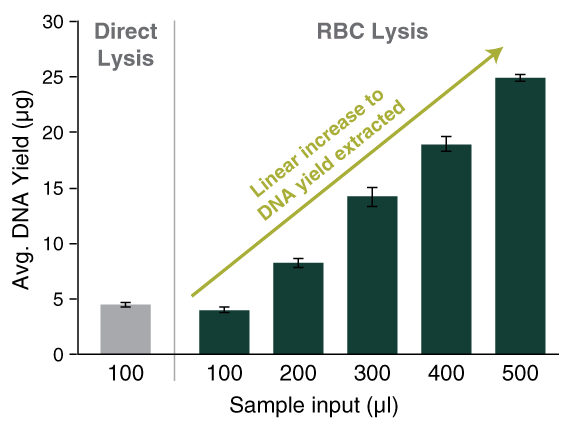

Figure 5: DNA isolation from higher volume and amounts of blood using RBC Lysis based protocol for Monarch gDNA Purification Kit

DNA extracted using RBC lysis method achieves similar high yields and concentrations as direct methods, while allowing for extraction from higher volumes and amounts of blood. Genomic DNA samples were purified in triplicate from 3 days old fresh pig blood. For the Direct Lysis samples, the DNA from 100 µl pig blood was purified using the standard protocol for fresh mammalian blood from the NEB #T3010 kit. For the RBC Lysis samples, the indicated amount of pig blood was used in the protocol for up to 500 µl blood using the NEB #T3010 kit and RBC Lysis Buffer (NEB #T3051).

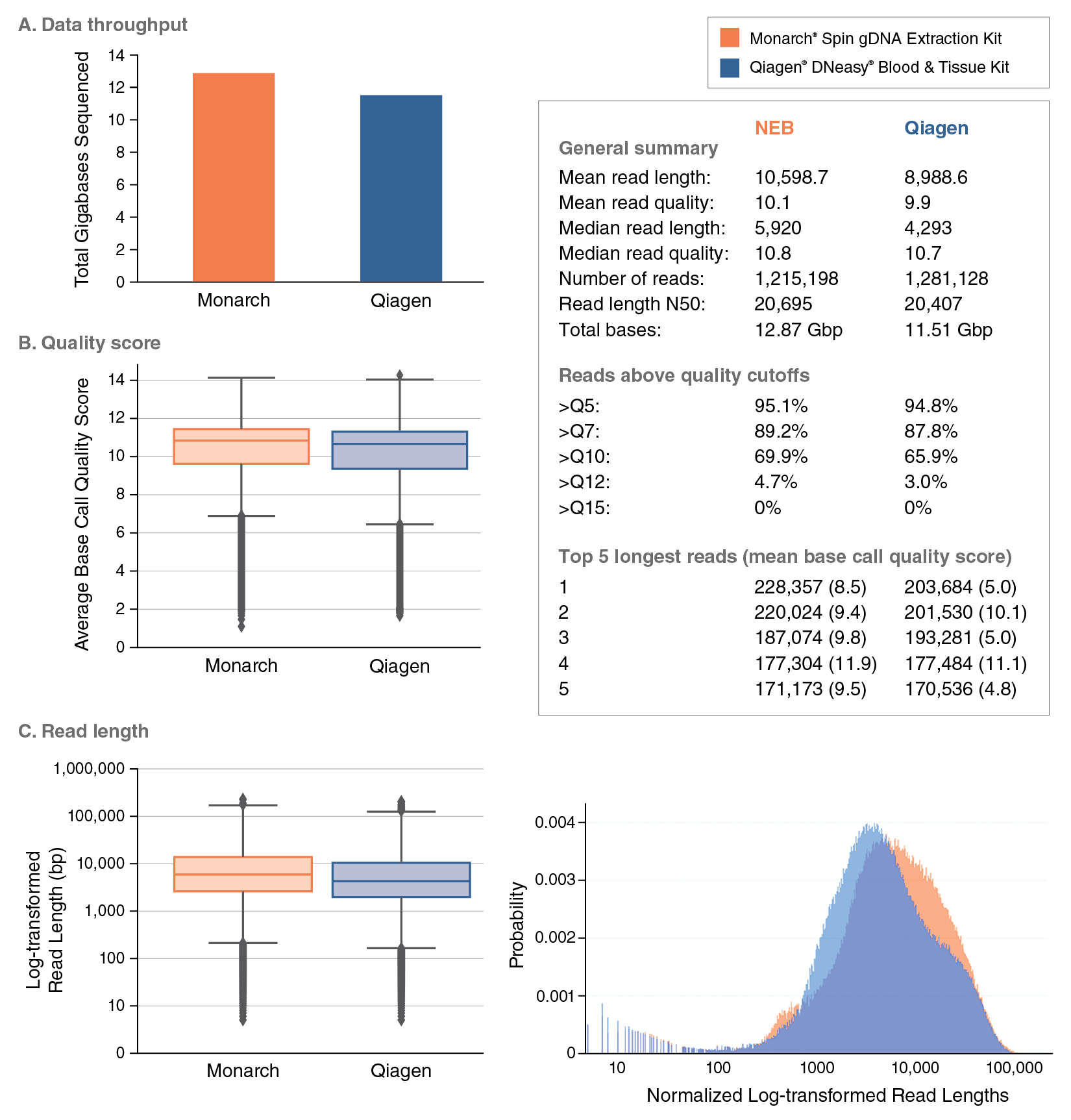

Figure 6: The Monarch Genomic DNA Purification Kit generates high quality DNA for nanopore sequencing.



HeLa cell genomic DNA was extracted using either the Monarch Genomic DNA Purification Kit or the Qiagen DNeasy Blood & Tissue Kit. One microgram of purified DNA was used to prepare Oxford Nanopore Technology (ONT) sequencing libraries following the ONT 1D Ligation Sequencing Kit (SQK-LSK109) protocol without DNA fragmentation. Libraries were loaded on a GridION (Flow cell R9.4.1) and the data was collected for 48 hrs. Libraries produced using the Monarch gDNA exceeded the Qiagen libraries on common sequencing metrics including: A. total sequencing data collected, B. read quality, and C. read length. Data was generated using NanoComp (Bioinformatics, Volume 34, Issue 15, 1 August 2018, Pages 2666–2669).


Reagents Supplied

The following reagents are supplied with this product:

NEB # Component Name Component # Stored at (°C) Amount Concentration

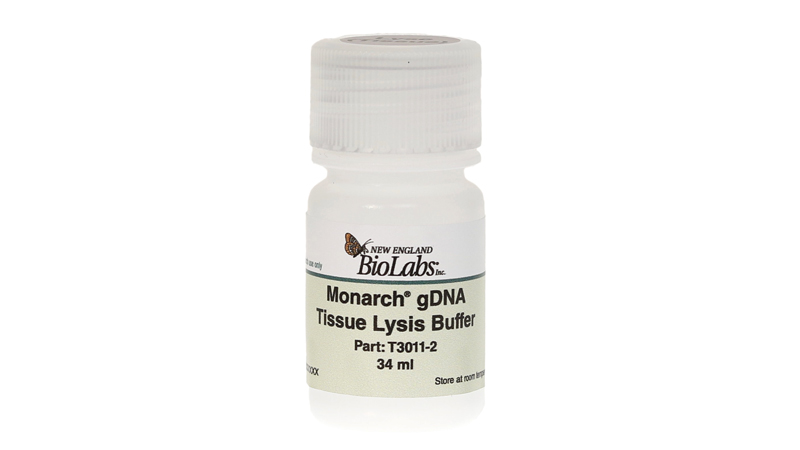

  Monarch® gDNA Tissue Lysis Buffer T3011-1 25 1 x 12 ml

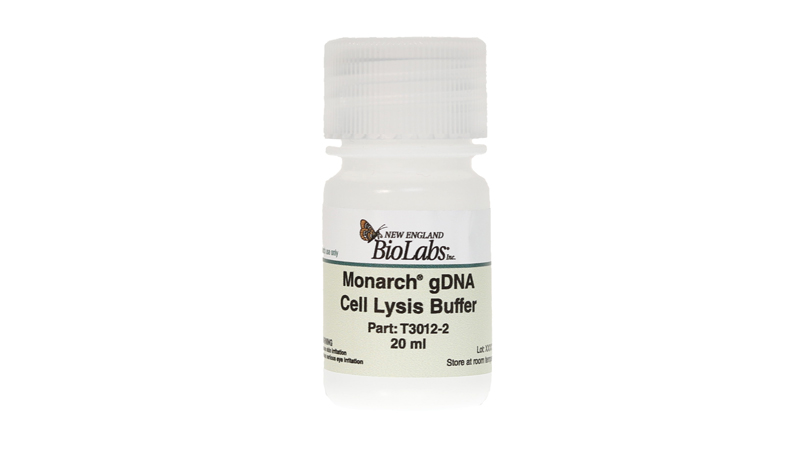

  Monarch® gDNA Cell Lysis Buffer T3012-1 25 1 x 6 ml

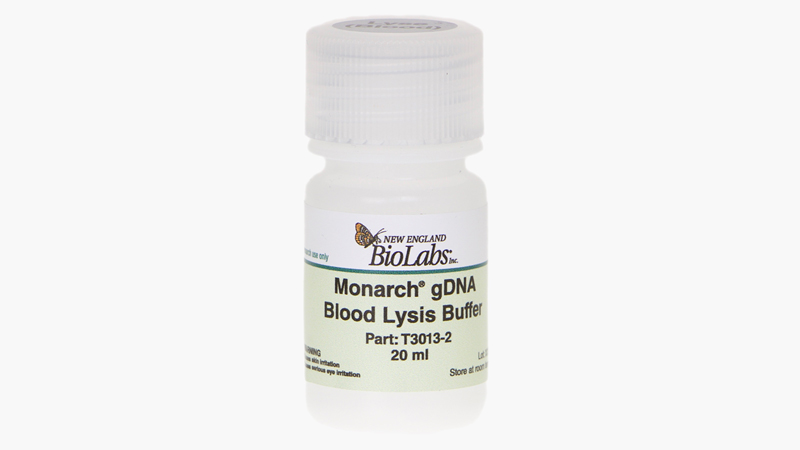

  Monarch® gDNA Blood Lysis Buffer T3013-1 25 1 x 6 ml

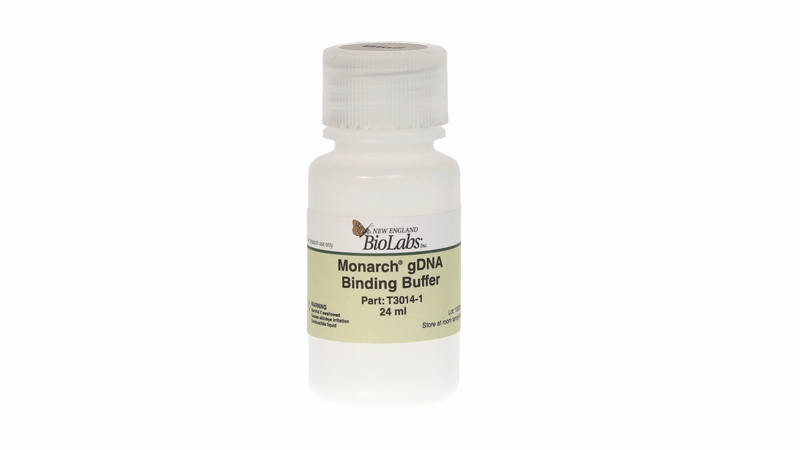

  Monarch® gDNA Binding Buffer T3014-1 25 1 x 24 ml

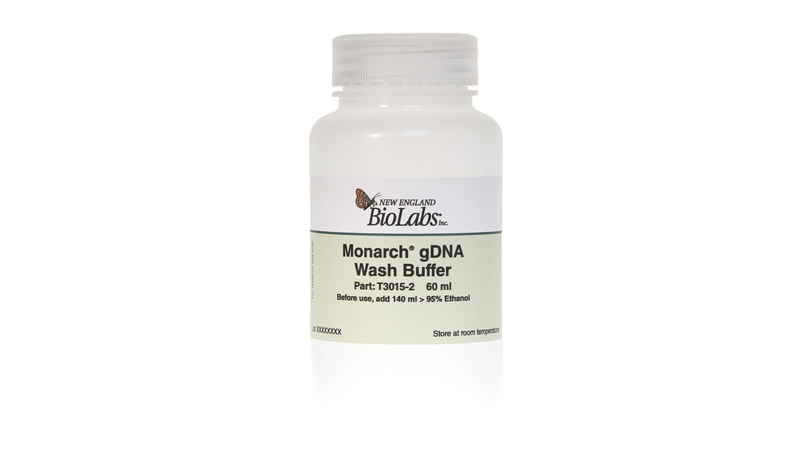

  Monarch® gDNA Wash Buffer T3015-1 25 1 x 18 ml

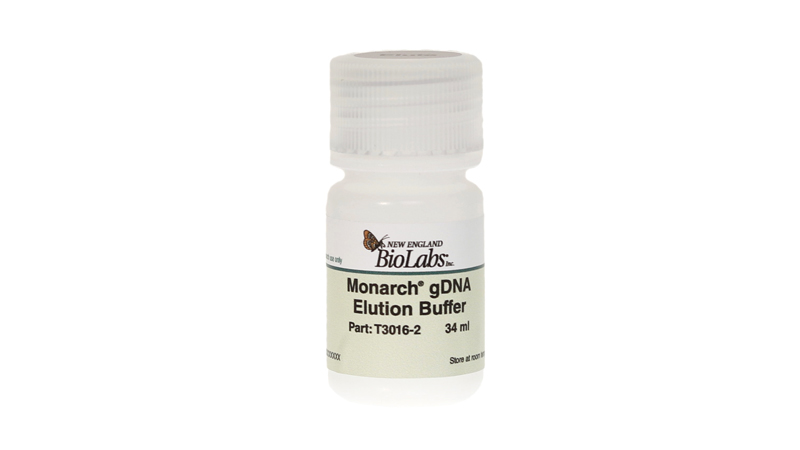

  Monarch® gDNA Elution Buffer T3016-1 25 1 x 14 ml

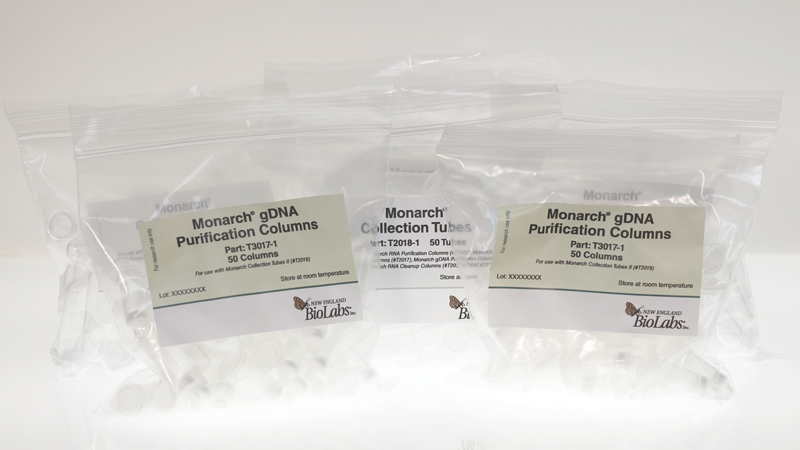

  Monarch® gDNA Purification Columns T3017-1 25 1 x 50 columns
  Monarch® Collection Tubes II T2018-1 25 2 x 50 tubes

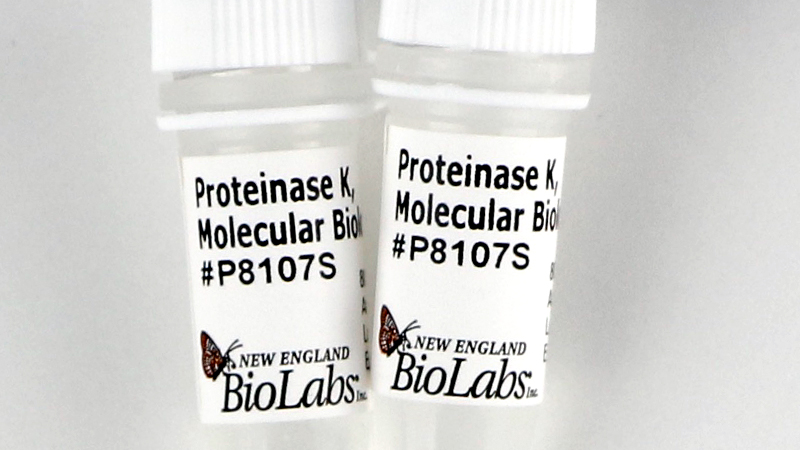

  Proteinase K, Molecular Biology Grade P8200AAVIAL -20 1 x 0.55 ml 20 mg/ml

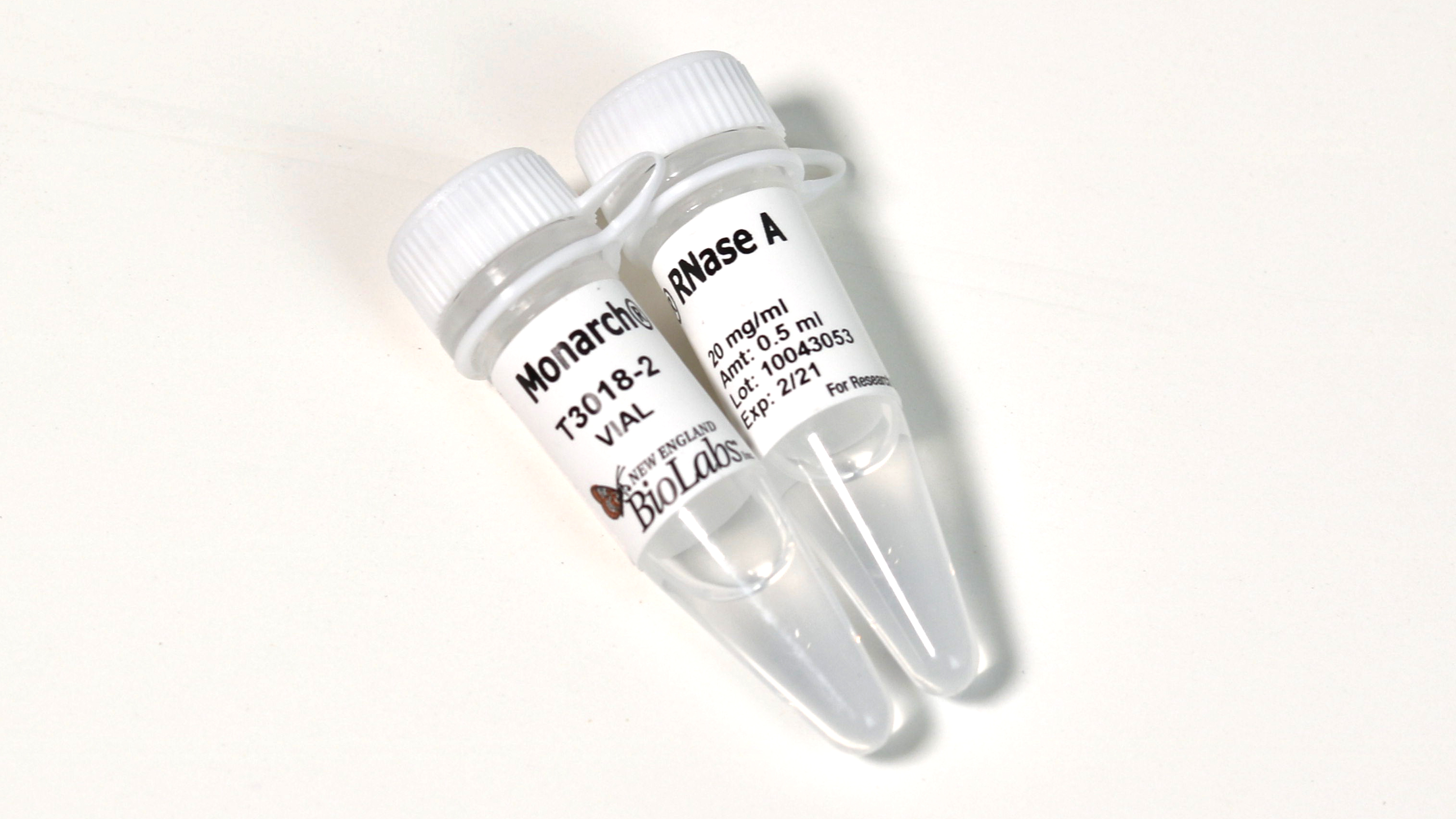

  Monarch® RNase A T3018-1 -20 1 x 0.17 ml 20 mg/ml
  Monarch® gDNA Tissue Lysis Buffer T3011-2 25 1 x 34 ml
  Monarch® gDNA Cell Lysis Buffer T3012-2 25 1 x 20 ml
  Monarch® gDNA Blood Lysis Buffer T3013-2 25 1 x 20 ml
  Monarch® gDNA Binding Buffer T3014-2 25 1 x 65 ml
  Monarch® gDNA Wash Buffer T3015-2 25 1 x 60 ml
  Monarch® gDNA Elution Buffer T3016-2 25 1 x 34 ml
  Monarch® gDNA Purification Columns T3017-1 25 3 x 50 columns
  Monarch® Collection Tubes II T2018-1 25 6 x 50 tubes
  Proteinase K, Molecular Biology Grade P8200AAVIAL -20 3 x 0.55 ml 20 mg/ml
  Monarch® RNase A T3018-2 -20 1 x 0.5 ml 20 mg/ml
An exception occurred during the operation, making the result invalid. Check InnerException for exception details.

Notes
  • Monarch RNase A and Proteinase K should be stored at -20°C after opening the kit.
Protocols
  1. Quick Protocol for Extraction and Purification of Genomic DNA
  2. Download Quick Protocol Card
  3. Protocol for Extraction and Purification of Genomic DNA from Cells (NEB #T3010)
  4. Protocol for Extraction and Purification of Genomic DNA from Tissues (NEB #T3010)
  5. Protocol for Extraction and Purification of Genomic DNA from Blood (NEB #T3010)
  6. Genomic DNA Purification from Gram-negative Bacteria (NEB #T3010)
  7. Genomic DNA Purification from Gram-positive Bacteria and Archaea (NEB #T3010)
  8. Genomic DNA Purification from Yeast (NEB #T3010)
  9. Genomic DNA Purification from Buccal Swabs (NEB #T3010)
  10. Genomic DNA Purification from Saliva (NEB #T3010)
  11. Genomic DNA Cleanup Protocol
  12. Genomic DNA Purification from Insects
  13. Protocol for Isolation of Genomic DNA (gDNA) from up to 500 µl mammalian blood using the Monarch Genomic DNA Purification Kit (NEB #T3010) and RBC Lysis Buffer (NEB #T3051)
  14. Protocol for Genomic DNA Extraction from Cultured Cells Stabilized with Monarch® DNA/RNA Protection Reagent (NEB #2011) using the Monarch Genomic DNA Purification Kit (NEB #T3010)
  15. Protocol for Genomic DNA Extraction from Blood Stabilized with Monarch® DNA/RNA Protection Reagent (NEB #T2011) using the Monarch Genomic DNA Purification Kit (NEB #T3010)
  16. Protocol for Genomic DNA Extraction from Tissue Samples Stabilized with Monarch® DNA/RNA Protection Reagent (NEB #T2011) using the Monarch Genomic DNA Purification Kit (NEB #T3010)
  17. Protocol for Genomic DNA Extraction from Gram-negative Bacteria using NEBExpress® T4 Lysozyme (NEB #P8115) and the Monarch® Genomic DNA Purification Kit (NEB #T3010)
  18. Protocol for Genomic DNA Extraction from Gram-positive Bacteria using NEBExpress® T4 Lysozyme (NEB #P8115) and the Monarch® Genomic DNA Purification Kit (NEB #T3010)
DataCards
FAQs
Quality Control Assay
Quality Control tests are performed on each new lot of NEB product to meet the specifications designated for it. Specifications and individual lot data from the tests that are performed for this particular product can be found and downloaded on the Product Specification Sheet, Certificate of Analysis, data card or product manual. Further information regarding NEB product quality can be found here.
Change Notifications

Effective March 14, 2024: Proteinase K, Molecular Biology Grade component number has changed with the concentration changing from 800U/ml to 20 mg/ml.

Effective May 9, 2022: Shelf life is 24 months.

Specifications
The Specification sheet is a document that includes the storage temperature, shelf life and the specifications designated for the product. The following file naming structure is used to name these document files: [Product Number]_[Size]_[Version]
Legal And Disclaimer

Products and content are covered by one or more patents, trademarks and/or copyrights owned or controlled by New England Biolabs, Inc (NEB). The use of trademark symbols does not necessarily indicate that the name is trademarked in the country where it is being read; it indicates where the content was originally developed. The use of this product may require the buyer to obtain additional third-party intellectual property rights for certain applications. For more information, please email busdev@neb.com.

This product is intended for research purposes only. This product is not intended to be used for therapeutic or diagnostic purposes in humans or animals.
