EnGen® Seq1 Cas9

Catalog # Concentration Size List Price Quantity Your Price
M0668T 20 µM 500 pmol $229.00
$206.10
Catalog # Size List Price Your Price
M0668T 500 pmol $229.00
$206.10
Catalog #
Qty:

*On-line ordering is for Canadian customers only. Web pricing is applicable only to orders placed online at www.neb.ca
  • 5´- NAGA -3´ PAM sequence allows targeting of additional genomic regions
  • Ideal for direct introduction of Cas9/sgRNA complexes

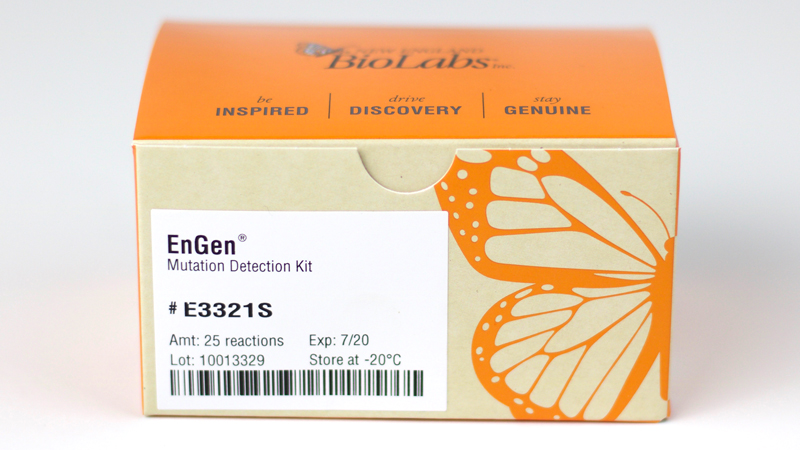

  • Compatible with the EnGen Mutation Detection Kit (NEB #E3321S)
  • Active in in vitro reactions from 20°C to 45°C
EnGen Seq1 Cas9 from Streptococcus equinus is an RNA-guided DNA endonuclease that catalyzes site-specific cleavage of double-stranded DNA (dsDNA). Targeting requires the formation of a ribonucleoprotein complex of Cas9 and a 116-nucleotide single guide RNA (sgRNA). The sgRNA encodes a 20-nucleotide sequence with complementarity to the DNA target strand immediately upstream of a 5´– NAGA –3´ protospacer adjacent motif (PAM) on the non-target strand. DNA cleavage by EnGen Seq1 Cas9 produces a double-stranded break occurring 3 nucleotides upstream of the PAM. EnGen Seq1 Cas9 has Simian virus 40 (SV40) T antigen nuclear localization signals (NLS) at both the N- and C-termini of the protein.

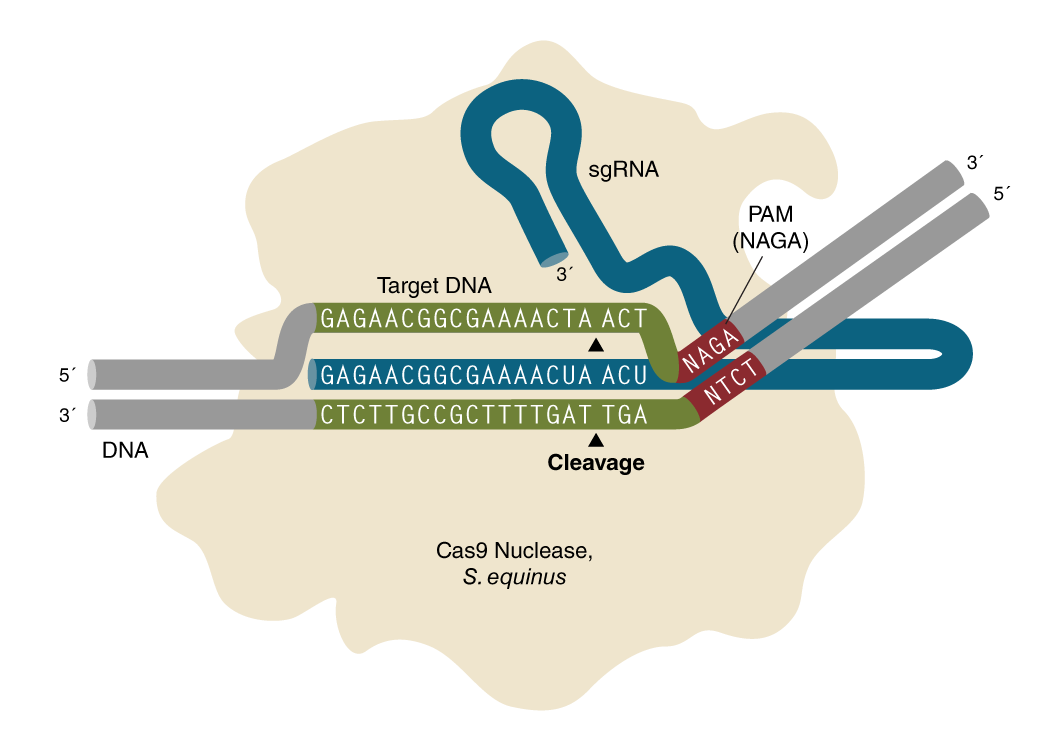

Figure 1. Schematic representation of S. equinus Cas9 nuclease complexed with a single guide RNA and target DNA

Diagram of a sequence

S. equinus Cas9 (Seq1 Cas9) protein is shown in beige, single guide RNA (sgRNA) is depicted in blue, and the DNA is shown in grey, green, and red. The DNA target, or protospacer, is shown in green and the base pairing complementarity of the target strand with the guide RNA in the R-loop is illustrated. The protospacer adjacent motif (PAM) which is required for Cas9 binding to DNA is shown in red and the locations of DNA strand cleavage are indicated with black triangles.

Product Source
An E. coli strain that carries the cloned Cas9 gene from Streptococcus equinus with N- and C-terminal Simian virus 40 (SV40) T antigen nuclear localization signal (NLS) and a C-terminal 6XHis tag.
Reagents Supplied

The following reagents are supplied with this product:

NEB # Component Name Component # Stored at (°C) Amount Concentration
  EnGen® Seq1 Cas9 M0668TVIAL -20 1 x 500 pmol 20 µM
  NEBuffer™ r3.1 B6003SVIAL -20 1 x 1.25 ml 10 X
An exception occurred during the operation, making the result invalid. Check InnerException for exception details.

Companion Products
Notes
  • 20 µM is equal to 3.26 mg/ml
Quality Control Assay
Quality Control tests are performed on each new lot of NEB product to meet the specifications designated for it. Specifications and individual lot data from the tests that are performed for this particular product can be found and downloaded on the Product Specification Sheet, Certificate of Analysis, data card or product manual. Further information regarding NEB product quality can be found here.
Specifications
The Specification sheet is a document that includes the storage temperature, shelf life and the specifications designated for the product. The following file naming structure is used to name these document files: [Product Number]_[Size]_[Version]
Certificate of Analysis
The Certificate of Analysis (COA) is a signed document that includes the storage temperature, expiration date and quality controls for an individual lot. The following file naming structure is used to name these document files: [Product Number]_[Size]_[Version]_[Lot Number]
Safety Data Sheets
Legal And Disclaimer

Products and content are covered by one or more patents, trademarks and/or copyrights owned or controlled by New England Biolabs, Inc (NEB). The use of trademark symbols does not necessarily indicate that the name is trademarked in the country where it is being read; it indicates where the content was originally developed. The use of this product may require the buyer to obtain additional third-party intellectual property rights for certain applications. For more information, please email busdev@neb.com.

This product is intended for research purposes only. This product is not intended to be used for therapeutic or diagnostic purposes in humans or animals.
