PathScan® Total Smad2/3 Sandwich ELISA Kit #12000

Item# Description List Price Web Price Qty
12000C PathScan® Total Smad2/3 Sandwich ELISA Kit - 1 Kit $714.00
*On-line ordering is for Canadian customers only. Web pricing is applicable only to orders placed online at

When ordering five or more kits, please contact us for processing time and pricing at

Kit Includes Volume Solution Color
Smad2/3 Mouse mAb Coated Microwells 96 tests
Smad2/ 3 Rabbit Detection mAb 1 ea Green (Lyophilized)
Anti-rabbit IgG, HRP-linked Antibody (ELISA Formulated) 1 ea Red (Lyophilized)
Detection Antibody Diluent 11 ml Green
HRP Diluent 11 ml Red
TMB Substrate #7004 11 ml
STOP Solution #7002 11 ml
Sealing Tape 2 ea
ELISA Wash Buffer (20X) #9801 25 ml
ELISA Sample Diluent 25 ml Blue
Cell Lysis Buffer (10X) #9803 15 ml

Note: 12 8-well modules – Each module is designed to break apart for 8 tests.
Storage: Kit should be stored at 4°C with the exception of Lysis Buffer, which is stored at –20°C (packaged separately).

Human, Mouse, Mink


The PathScan® Total Smad2/3 Sandwich ELISA Kit is a solid phase sandwich enzyme-linked immunosorbent assay (ELISA) that recognizes endogenous levels of Smad2 and Smad3 proteins. A Smad2/3 Mouse Antibody has been coated on the microwells. After incubation with cell lysates, Smad2/3 proteins (phospho and nonphospho) are captured by the coated antibody. Following extensive washing, a Smad2/3 Rabbit Detection Antibody is added to detect captured Smad2/3 proteins. Anti-rabbit IgG, HRP-linked Antibody is then used to recognize the bound detection antibody. HRP substrate, TMB, is added to develop color. The magnitude of the absorbance for this developed color is proportional to the quantity of Smad2 and Smad3 proteins.

Antibodies in kit are custom formulations specific to kit.

Specificity / Sensitivity

PathScan® Total Smad2/3 Sandwich ELISA Kit recognizes endogenous levels of total Smad2 and Smad3 protein in human cells, as shown in Figure 1. The kit sensitivity is shown in Figure 2. This kit detects proteins from the indicated species, as determined through in-house testing, but may also detect homologous proteins from other species.

ELISA - Western correlation

ELISA - Western correlation

Figure 1. Treatment of HeLa cells with hTGF-β3 #8425 stimulates phosphorylation of Smad2 at Ser465/467 or Smad3 at Ser423/425, as detected by PathScan® Phospho-Smad2 (Ser465/467)/Smad3 (Ser423/425) Sandwich ELISA Kit #12001, but does not affect the level of total Smad2 or Smad3 protein detected by PathScan® Total Smad2/3 Sandwich ELISA Kit. The absorbance readings at 450 nm are shown in the top figure, while the corresponding western blots using Smad2/3 (D7G7) XP® Rabbit mAb #8685 (left panel), Phospho-Smad2 (Ser465/467) (138D4) Rabbit mAb #3108 (center panel), or a phospho-Smad3 (Ser423/425) Rabbit mAb (right panel) are shown in the bottom figure.

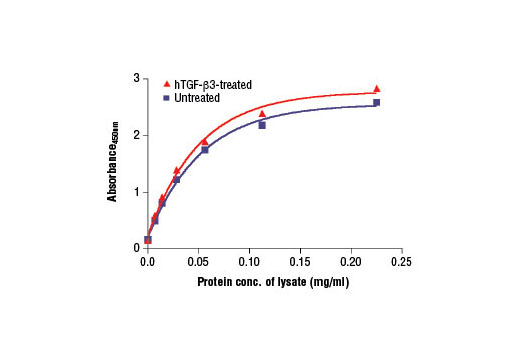

Figure 2. The relationship between the protein concentration of lysates from untreated and TGF-β3-treated HeLa cells and the absorbance at 450 nm as detected by the PathScan® Total Smad2/3 Sandwich ELISA Kit is shown. Starved HeLa cells (85% confluence) were treated with 10 ng/ml hTGF-β3 #8425 for 30 min at 37ºC.


Members of the Smad family of signal transduction molecules are components of a critical intracellular pathway that transmit TGF-β signals from the cell surface into the nucleus. Three distinct classes of Smads have been defined: the receptor-regulated Smads (R-Smads), which include Smad1, 2, 3, 5, and 8; the common-mediator Smad (co-Smad), Smad4; and the antagonistic or inhibitory Smads (I-Smads), Smad6 and 7 (1-5). Activated type I receptors associate with specific R-Smads and phosphorylate them on a conserved carboxy terminal SSXS motif. The phosphorylated R-Smad dissociates from the receptor and forms a heteromeric complex with the co-Smad (Smad4), allowing translocation of the complex to the nucleus. Once in the nucleus, Smads can target a variety of DNA binding proteins to regulate transcriptional responses (6-8).

  1. Heldin, C.H. et al. (1997) Nature 390, 465-71.
  2. Attisano, L. and Wrana, J.L. (1998) Curr Opin Cell Biol 10, 188-94.
  3. Derynck, R. et al. (1998) Cell 95, 737-40.
  4. Massagué, J. (1998) Annu Rev Biochem 67, 753-91.
  5. Whitman, M. (1998) Genes Dev 12, 2445-62.
  6. Wu, G. et al. (2000) Science 287, 92-7.
  7. Attisano, L. and Wrana, J.L. (2002) Science 296, 1646-7.
  8. Moustakas, A. et al. (2001) J Cell Sci 114, 4359-69.
