Fast DNA Ladder

Catalog # Concentration Size List Price Quantity Your Price
N3238S 25 µg/ml 1 ml $100.00
$90.00
Catalog # Size List Price Your Price
N3238S 1 ml $100.00
$90.00
Catalog #
Qty:

*On-line ordering is for Canadian customers only. Web pricing is applicable only to orders placed online at www.neb.ca
  • For use with fast electrophoresis systems (e.g. E-Gel® and FlashGel®)
  • Size range: 50 bp to 10 kb
  • Convenient, ready-to-load format
  • Formulated with xylene cyanol dye
  • Easy to identify reference band
  • Suitable for 50 gel lanes



The Fast DNA ladder is a pre-mixed, ready-to-load molecular weight marker containing xylene cyanol FF dye as a tracking dye. The DNA Ladder consists of proprietary plasmids, which are digested to completion with appropriate restriction enzymes to yield 11 bands suitable for use as molecular weight standards for fast electrophoresis systems as well as standard electrophoresis. The digested DNA includes fragments ranging from 50 base pairs to 10 kilobases. The 1 kb fragment has increased intensity to serve as reference band. This DNA Ladder has been tested and is suitable for use with many fast electrophoresis systems, such as the FlashGel® DNA System from Lonza or the E-Gel® Precast Agarose Electrophoresis System from Invitrogen (see Product Notes below for details).

  • Recommended gel percentage range: 0.8-1.2%
  • Optimum separation on 1%
Reagents Supplied

The following reagents are supplied with this product:

NEB # Component Name Component # Stored at (°C) Amount Concentration
  Fast DNA Ladder N3238SVIAL 4 1 x 1 ml 25 µg/ml

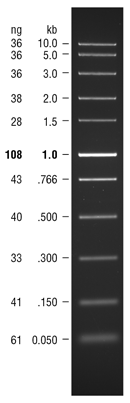

Properties & Usage

Bases

Fragment Mass (ng) bp
1 36 10,002
2 36 5,001
3 36 3,001
4 38 2,000
5 28 1,500
6 108 1,000
7 43 766
8 40 500
9 33 300
10 41 150
11 61 50

Effective Size Range

50bp to 10,002bp

Storage Buffer

0.002% Xylene Cyanol
5 mM Tris-HCl
5 mM EDTA
5% Glycerol
pH 8 @ 25°C



Notes
  • Preparation: The double-stranded DNA is digested to completion with appropriate restriction enzymes, phenol extracted and equilibrated in storage buffer.
  • Usage Recommendation: For standard electrophoresis applications: we recommend loading 20 µl (0.5 µg) of the Fast DNA Ladder per gel lane. The best separation occurs on a 1.2% agarose gel. Below 1%, the 50 bp fragment may not separate from the 150 bp fragment. The Fast DNA Ladder is not intended for precise quantification of DNA mass but can be used for approximating the mass of DNA in comparably intense samples of similar size.
    For use on fast electrophoresis systems: follow the loading recommendations of the system’s manufacturer (5 to 20 µl). The Fast DNA Ladder is suitable for use on the FlashGel® System from Lonza (1.2% gel) or on the E-Gel® system from Invitrogen. This DNA Ladder has been tested and is suitable for FlashGel® 1.2% gels, E-Gel® 0.8, 1.2 and 2% gels with ethidium bromide or SYBR dye. This DNA ladder is also suitable for the E-Gel® EX 1% and 2% gels, the E-Gel® NGS, the E-Gel® SizeSelect and the E-Gel® CloneWell gels, but may require a ½ to ¼ dilution in water for optimum results.
  • Fast DNA Ladder is stable for at least 6 months at 25°C.
  • For long term storage. Store at 4°C or -20°C. If stored at -20°C, mix well after thawing.
References
  • Sambrook, J., Fritsch, E. F. and Maniatis, T. (1989). Cold Spring Harbor(Ed.), Molecular Cloning: A Laboratory Manual, (2nd ed.). 10.51-10.67. Cold Spring Harbor Laboratory Press.
Quality Control Assay
Quality Control tests are performed on each new lot of NEB product to meet the specifications designated for it. Specifications and individual lot data from the tests that are performed for this particular product can be found and downloaded on the Product Specification Sheet, Certificate of Analysis, data card or product manual. Further information regarding NEB product quality can be found here.
Specifications
The Specification sheet is a document that includes the storage temperature, shelf life and the specifications designated for the product. The following file naming structure is used to name these document files: [Product Number]_[Size]_[Version]
Certificate of Analysis
The Certificate of Analysis (COA) is a signed document that includes the storage temperature, expiration date and quality controls for an individual lot. The following file naming structure is used to name these document files: [Product Number]_[Size]_[Version]_[Lot Number]
